Products›Hidden Gutter System›Outlet Insulation

Hidden Gutter System

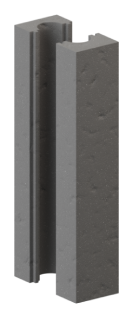

Outlet Insulation

Information

Outlet insulation - it is designed to insulate the downpipe in the building facade. It also reduces thermal bridges and provides easy incorporation into the remaining insulation of the house.

The system is available upon request.

Technical details

System	L1, L2	H	W1	W2	D
Hidden Gutter System	200 mm	1000 mm	35 mm	60 mm	105 mm

For architect

A CALCULATOR: what is it for? It is available on the website and will easily determine the distance Z, i.e. the height between the edge of the board and the top edge of the counter battens. It facilitates the determination of the base installation position.

CALCULATOR

Advantages

Hidden System installation easier than you think

Created based on the best practices, in co-operation with master roofers. Calculator - a tool to make work more efficient.

Fascia hook - adjustable

Ensures fascia installation and levelleing regardless of the gutter system slope.

Aestherc reinforced fascia (optimal thickness of 0.7 mm)

Created in line with the latest trends in eaveless house design. The specially designed fascia profile guarantees no ripples.

The classic art of roofing

The system is installed in accordance with the well-known roofing standards. Installation is efficient thanks to the use of the proven semi-circular KROP gutter profile.

Special protection for the fascia profile

Protects against water flowing in between the fascia and precipitation gutter.

Roof soffit panel for houses with eaves

It ensures that the drain pipe and the soffit are installed in an aesthetic manner.

Ventilation gap

The vertical adjustment of the fascia on the bracket allows to maintain proper roof ventilation.

Perfect water-tightness

Eliminates the risk of leakage in the system. The proven solutions for sealing and connecting the gutter to the downpipe (pipe connector with a gasket).

Proven performance

Efficient water drainage thanks to the use of a classic KROP gutter system.

Longest warranty on the market

Warranty against perforation by rust for REINFORCED FASCIA - up to 40 years Mechanical durability warranty for KROP PVC system - up to 20 years Warranty of the system water-tightness during installation of KROP PVC pipe in the facade - up to 10 years . Warranty in terms of mechanical durability for the adapter and square trigger - 30 years

Complete material package for an architect

A library of CAD drawings ensures that the system can be quickly entered into the design by the architect.

Application to facilitate installation

Facilitated correct positioning of the hidden gutter system in relation to the roof plane - a special installation calculator . Find out for yourself!
